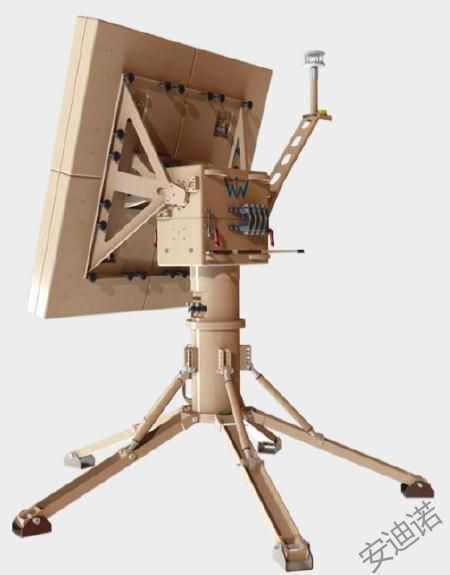

型号：_WTW-S-31-P
• Weight: appr. 270 kg • Dimension (Park Position El. 90°): appr. 5.1ft x 5.1ft x 8.4ft (WxDxH) • Dimension (Transport Position El. 0°): appr. 5.1ft x 3.0ft x 8.8ft (WxDxH) • Polarisation: RHCP und LHCP • Gain: 30dBi @ 2350MHz • Beamwidth: <5° • Mode: - Auto-, Slave-, Manual-Tracking • Nominal Torque: - Az. max. 1700 Nm - El. max. 1100 Nm • Velocity: - Az. >20°/sec - El. >20°/sec • Movement: - Az. unlimited (Slipring and Dual RF Rotary Joint) - El. -5° up to 90° • Backlash: <1arcmin • operational Wind speed: up to 65mph • stowed: up to 100mph
