LNB C-BAND PLL 3200-BPF

北京安迪诺数字系统技术有限公司 2019-08-14 13:17:04

型号:3200-BPF

\


Noise Temperature 70K max. at room temp. @ CF
L.O. Stability ± 10 kHz max.
Phase Noise (SSB) max. -80 dBc/Hz at 1kHz
-85 dBc/Hz at 10kHz
-95 dBc/Hz at 100kHz
Input VSWR 2.5 : 1 max.
Output VSWR 2.5 : 1 max.
Gain 62 dB typ., 55 dB min., 70 dB max.
Gain Flatness ≤ 6 dB p-p
(over full band)
Output P1dB + 9 dBm min.


DC Power + 12V to + 24V DC
Current 300 mA max.
Input (waterproof) CPR229G waveguide grooved
Output (waterproof) F-Connector (75 Ohm)
N-Connector (50 Ohm)

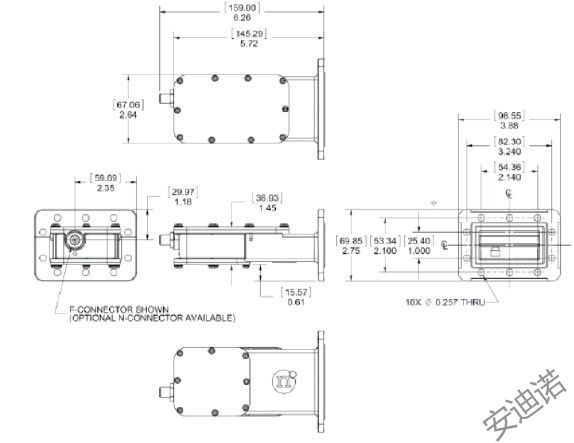

Dimensions (L x W x H) 144 mm x 70 mm x 98 mm
(5.7 in x 2.8 in x 3.9 in)
Weight 500 g (17.64 oz)
Operating Temperature - 40 to + 60°C
Storage Temperature - 40 to + 80°C

\
