型号：M6100

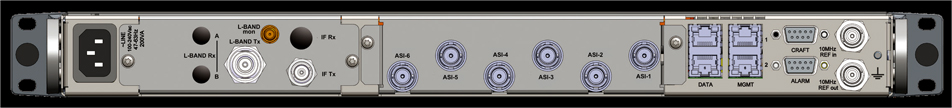

Newtec M6100 Broadcast Satellite Modulator
Ordering n°
Configuration Options
Category
M6100
Select 1 option
Hardware Platform
Chassis Type 01 (Modulator)
CH-01
Select 1 option
Operating Software
M6100 Major Software R1*
MS-12
Select 1 option
Mains Power Supply Unit
PSU Single AC 110/240V
PS-00
PSU Dual Redundant AC 110/240V
PS-01
Select 1 option
Video Package
Video TS, Carrier-ID(NIT), TS Analyser*
VP-01
Data Package
Baseband frame input*
DP-01
Select 1 option
Video Interface
GbE TSoIP, SMPTE-2022 DEC (req. VP-01)*
VI-01
ASI (6 connectors) (req. VP-01)
AS-02
GbE TSoIP + ASI(6) (req. VP-01)
VI-02
Select 1 option
Modulator Output Interface
L-band with switchable 10MHz output*
OU-00
IF (50-180 MHz)*
OU-01
IF+ L-band with switchable 10 MHz out*
OU-02
L-band + 10MHz output + 24/48V BUC
OU-05
IF+L-band + 10MHz output + 24/48V BUC
OU-06
Select 1 option
Modulation Standard
and Coding
(includes multistream support)
DVB-S Q/8PSK*
SC-01
DVB-S/S2 QPSK*
SC-02
DVB-S/S2 Q/8PSK*
SC-03
DVB-S/S2 Q/8PSK 16QAM 16APSK*
SC-04
DVB-S/S2 Q/8PSK 16QAM 16/32APSK*
SC-05
DVB-S/S2/Ext Q/8PSK*
SC-06
DVB-S/S2/Ext Q/8PSK 16QAM 16APSK*
SC-07
DVB-S/S2/Ext Q/8PSK 16QAM 16/32APSK*
SC-08
DVB-S/S2/Ext Q/8PSK 16QAM 16/32/64APSK*
SC-09
Select 1 option
Modulation Maximum
Symbol Rates
Modulation Symbol Rate 5Mbaud*
SR-05
Modulation Symbol Rate 15Mbaud*
SR-15
Modulation Symbol Rate 36Mbaud*
SR-36
Modulation Symbol Rate 54Mbaud*
SR-54
Modulation Symbol Rate 72Mbaud*
SR-72
Select 1 option
Internal Reference Clock
Standard 10MHz
IR-00
High Stability 10MHz
IR-01
Very High Stability 10MHz
IR-02
Additional Options
Category
Max. 1 option per category
Reference Clock Output
10 MHz Reference Output (BNC)
RO-01
Max. 1 option per category
Modulator Output Connector
L-Band output N to SMA output adapter
OU-10
Max. 1 option per category
Clean Channel TechnologyTM
Clean Channel Technology for 5Mbaud*
CC-05
Clean Channel Technology for 15Mbaud*
CC-15
Clean Channel Technology for 36Mbaud*
CC-36
Clean Channel Technology for 54Mbaud*
CC-54
Clean Channel Technology for 72Mbaud*
CC-72
Max. 1 option per category
Pre-Distortion
Automated Equalink® *
AE-01
Max. 1 option per category
DVB Carrier Identifier
DVB RF Carrier Identifier*
ID-01
Max. 1 option per category
MPE Insertion
MPE Data insertion in TS (req. VP-01)*
VM-01
Max. 1 option per category
Encryption
BISS (0-1-E) Single TS (Req. VP-01)*
CA-01
Services
Category
Max. 1 option per category
Support
Care Pack 3 Basic
GA-08
Care Pack 3 Enhanced
GA-09
