Model：Model 500

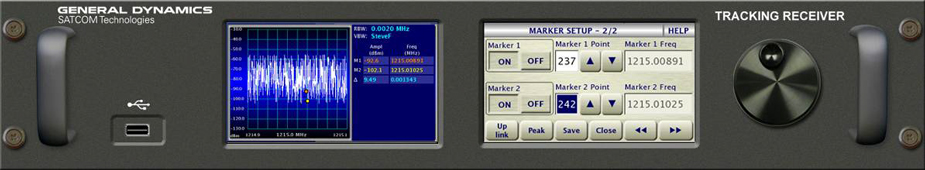

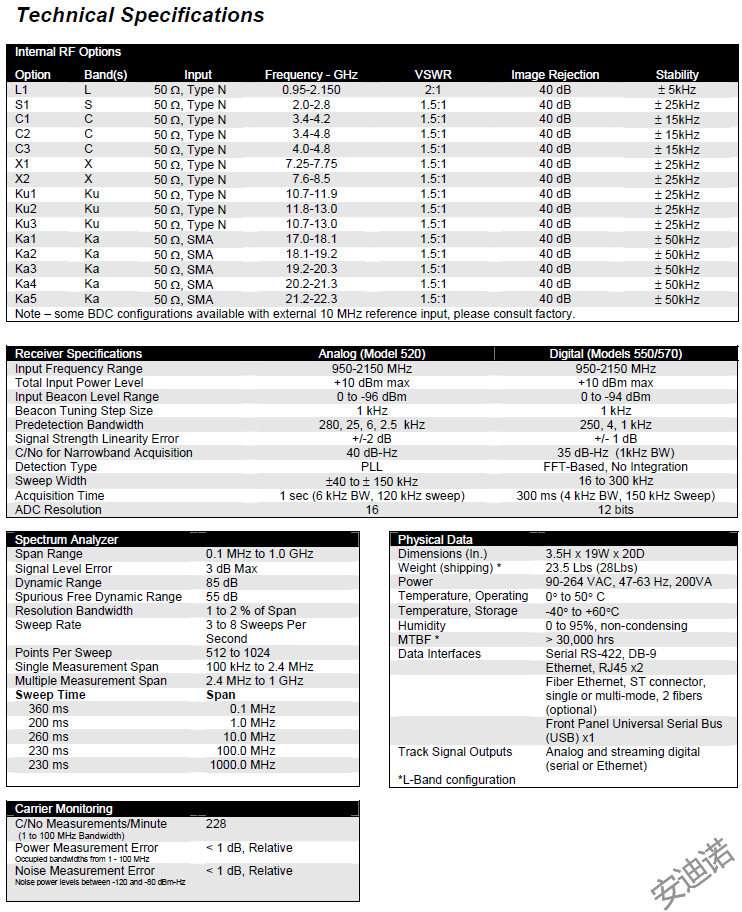

Internal RF Options
Option Band(s) Input Frequency - GHz VSWR Image Rejection Stability
L1 L 50 , Type N 0.95-2.150 2:1 40 dB  5kHz
S1 S 50 , Type N 2.0-2.8 1.5:1 40 dB  25kHz
C1 C 50 , Type N 3.4-4.2 1.5:1 40 dB  15kHz
C2 C 50 , Type N 3.4-4.8 1.5:1 40 dB  15kHz
C3 C 50 , Type N 4.0-4.8 1.5:1 40 dB  15kHz
X1 X 50 , Type N 7.25-7.75 1.5:1 40 dB  25kHz
X2 X 50 , Type N 7.6-8.5 1.5:1 40 dB  25kHz
Ku1 Ku 50 , Type N 10.7-11.9 1.5:1 40 dB  25kHz
Ku2 Ku 50 , Type N 11.8-13.0 1.5:1 40 dB  25kHz
Ku3 Ku 50 , Type N 10.7-13.0 1.5:1 40 dB  25kHz
Ka1 Ka 50 , SMA 17.0-18.1 1.5:1 40 dB  50kHz
Ka2 Ka 50 , SMA 18.1-19.2 1.5:1 40 dB  50kHz
Ka3 Ka 50 , SMA 19.2-20.3 1.5:1 40 dB  50kHz
Ka4 Ka 50 , SMA 20.2-21.3 1.5:1 40 dB  50kHz
Ka5 Ka 50 , SMA 21.2-22.3 1.5:1 40 dB  50kHz
Note – some BDC configurations available with external 10 MHz reference input, please consult factory.
Receiver Specifications Analog (Model 520) Digital (Models 550/570)
Input Frequency Range 950-2150 MHz 950-2150 MHz
Total Input Power Level +10 dBm max +10 dBm max
Input Beacon Level Range 0 to -96 dBm 0 to -94 dBm
Beacon Tuning Step Size 1 kHz 1 kHz
Predetection Bandwidth 280, 25, 6, 2.5 kHz 250, 4, 1 kHz
Signal Strength Linearity Error +/-2 dB +/- 1 dB
C/No for Narrowband Acquisition 40 dB-Hz 35 dB-Hz (1kHz BW)
Detection Type PLL FFT-Based, No Integration
Sweep Width 40 to  150 kHz 16 to 300 kHz
Acquisition Time 1 sec (6 kHz BW, 120 kHz sweep) 300 ms (4 kHz BW, 150 kHz Sweep)
ADC Resolution 16 12 bits
