LU700 - SV可以连接到汽车安装LiveU Xtender外部天线，以及您现有卫星设备创建一个混合无线通信/卫星在偏远地区的解决方案，保证带宽。使用而在卫星静止时，然后无缝地切换到Xtender提供蜂窝网络的举动。
LU700 - SV内加入LiveU的产品LiveU的多层实时视频系统连接，LiveU ，其中包括：前端野外采集终端;后端服务器和LiveU Media Center 完整的配置，控制和监控整个直播系统和内容管理平台，可通过任何浏览器支持的设备。
Video Input Resolutions 1080p24, 1080i50/60, 720p50/60/25/30, PAL, NTSC
Video Formats HD-SDI, SD-SDI, PAL/NTSC (SMPTE 425M, 424M, 259M, 292, 296M), full A/V auto detection
Video Encoder H.264 AVC high profile
Audio Encoder AAC-LC
Video Transport RTP
2 x Ethernet ports for connection to satellite (BGAN / Ka-SAT etc.), 6 external cellular network connections(when used with LiveU Xtender),
Supported Technologies
4G LTE, HSPA+, HSUPA, HSDPA, UMTS, CDMA EVDO Rev 0/A/B, Mobile WiMAX, and internal
Wi-Fi 802.11 a,b,g & n support
Proprietary RF
Technology
Antenna Arrays (When used with LiveU Xtender) benefits in video quality, resiliency, coverage, operation in areas of poor
coverage, on-the-drive, and even in crowded areas. Support for all common wireless frequencies including
LTE
Operational
Modes
Multi-Profile
Selection
Low latency mode
Maximum Quality mode for increased compensation in noisy networks
Multi-target Output Diverse A/V output through SDI and H.264 streams including connectivity for CDNs
Power Power Sources AC: 100V to 240V
Remote Control Full control via Windows-based RCA software (provided)
Preview Video preview; per-network cellular connectivity status incl. throughput, network delay etc.
Rich Feature Set Resiliency and
Quality
Top video quality and resiliency through algorithms such as automatic Adaptive Bit Rate (ABR). Video
encoding bit rate is set automatically; automatic Forward Error Correction (FEC) and other lost packet
recovery algorithms to maximize Quality of Experience for the end-user
Professional
Features
Low latency for studio interviews; Store & Forward; file transfer (FTP); video preview;
Physical &
Interfaces
Data RJ-45 Ethernet, USB

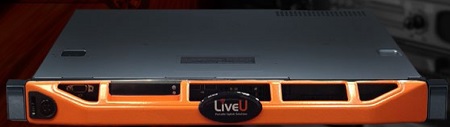

Dimensions Industry-standard 1U rackmount server:
42.4 H x 434.0 W x 394.3 D (mm) / 1.66” H x 17.09” W x 15.52” D (in)
Temperature Operating: 10C to 35C
